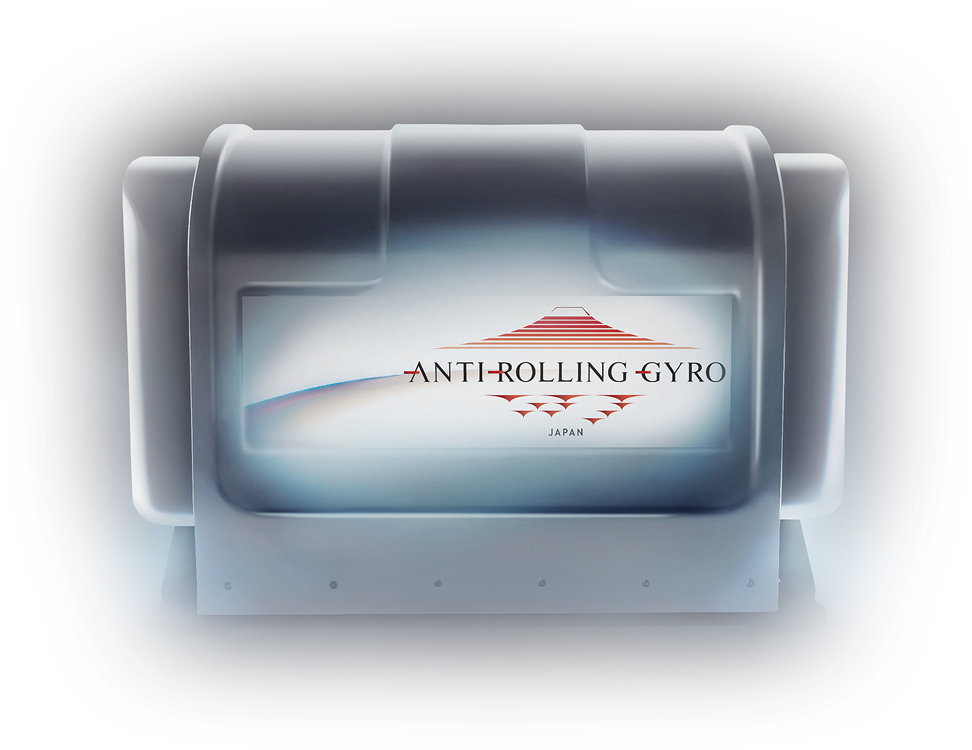

Air-cooled gyro stabilizer with no hull openings, for yachts up to 60 tonnes per unit.
Inside the ARG, a flywheel spins at high speed within a gimbal. When the yacht starts to roll, the gyro tilts and produces a counter-torque that dampens the motion, both at anchor and underway. Its 180° gimbal swing lets it respond to larger waves.
The ARG mounts on a solid foundation, with no through-hull openings, no water cooling, no hydraulics and no vacuum. Built on Mitsubishi gyro technology in use since 1981 and distributed by DMS Holland, it is simple to retrofit, quiet in operation and easy to maintain.
Up to 4 t
Under 10 t
10–30 t
30–45 t
45–60 t
| MODEL | VESSEL | MAX TORQUE | POWER | WEIGHT |
|---|---|---|---|---|

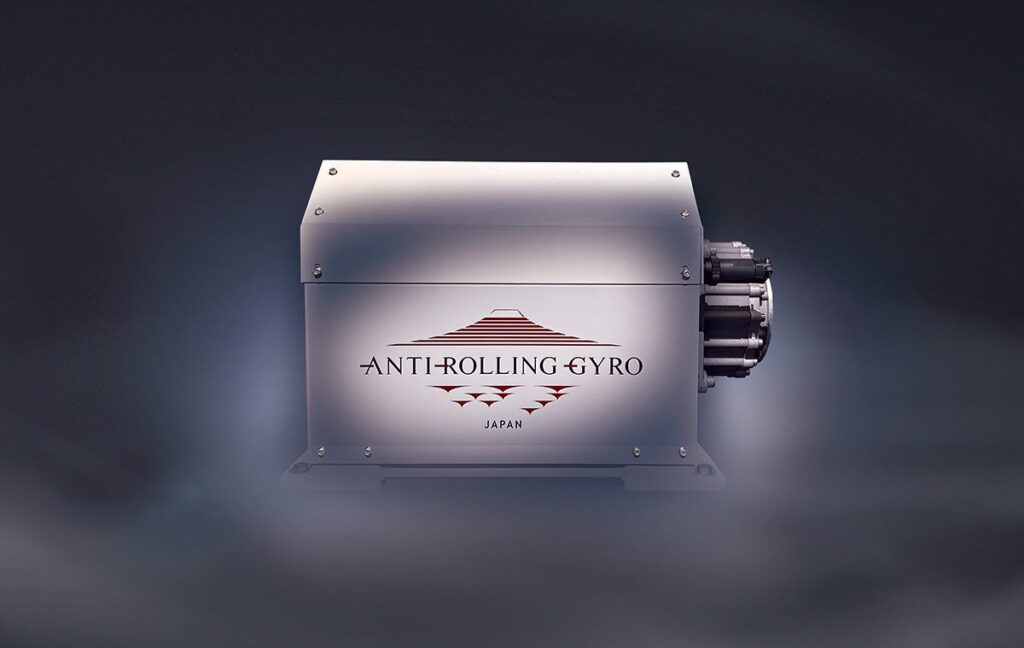

| 45T | Up to 4 t | 4,500 Nm | 12/24 V DC, 900 W max | 210 kg |
| 50T | Under 10 t | 5,000 Nm | 12 V DC, 1.0 kW max | 234 kg |

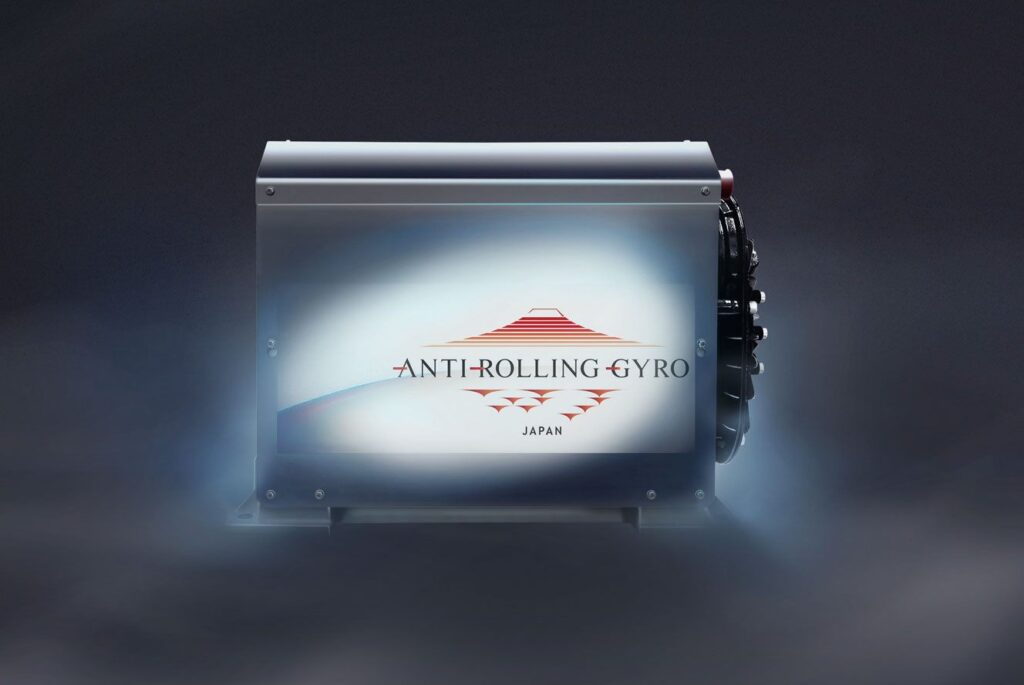

| 65T | Under 10 t | 6,500 Nm | 210–240 V AC, 1.8 kW max | 234 kg |

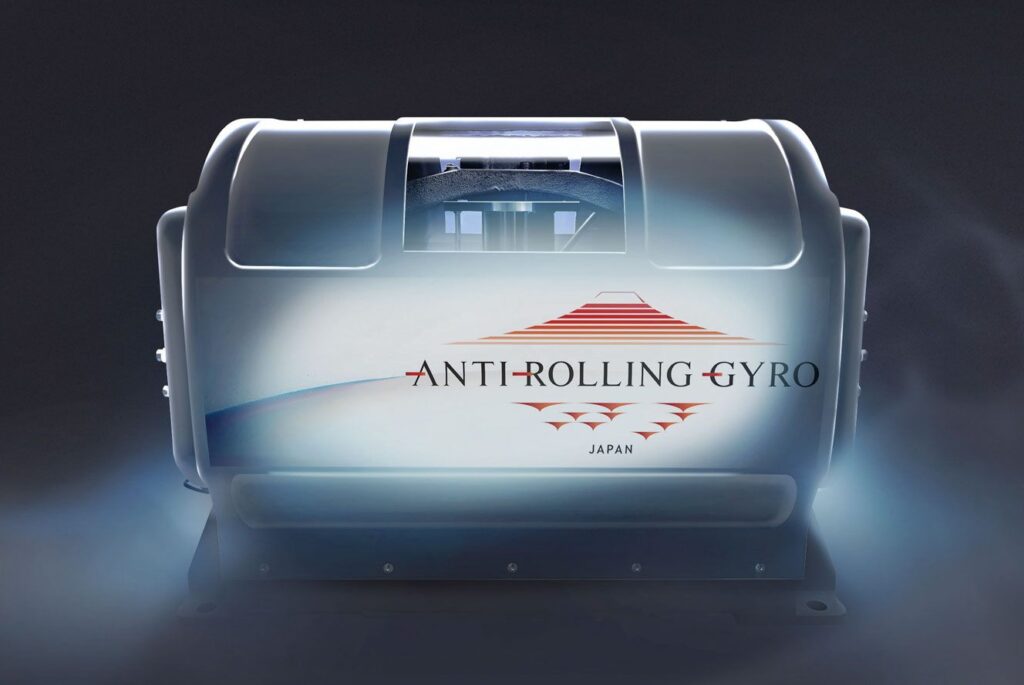

| 175T | 10–30 t | 17,500 Nm | 220–240 V AC, 4.3 kW max | 380 kg |

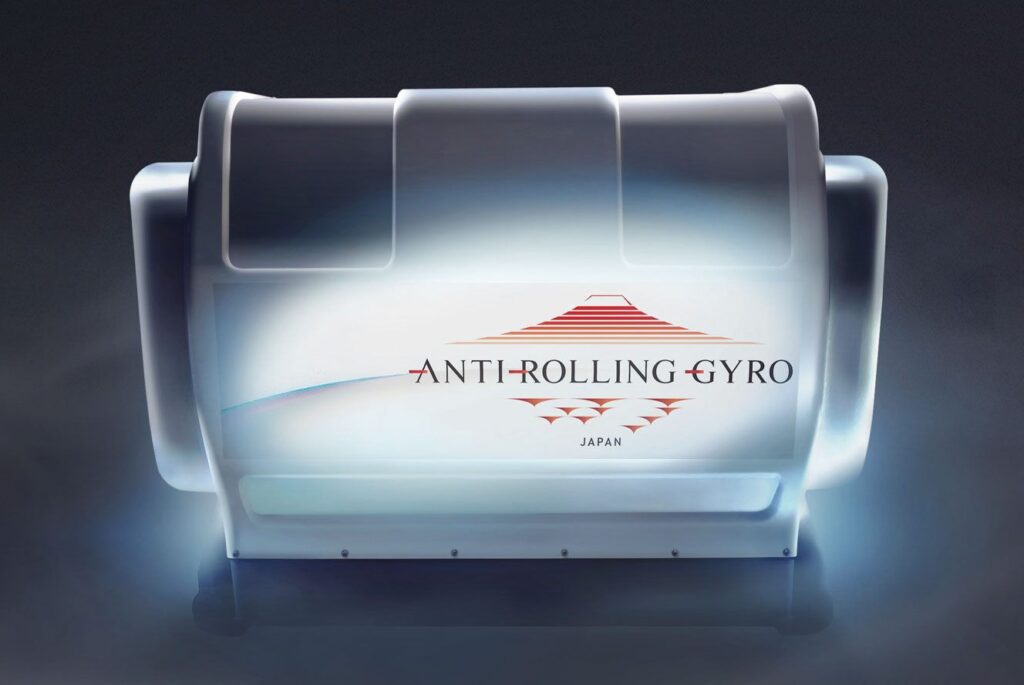

| 250T | 30–45 t | 25,000 Nm | 220–240 V AC, 4.8 kW max | 700 kg |

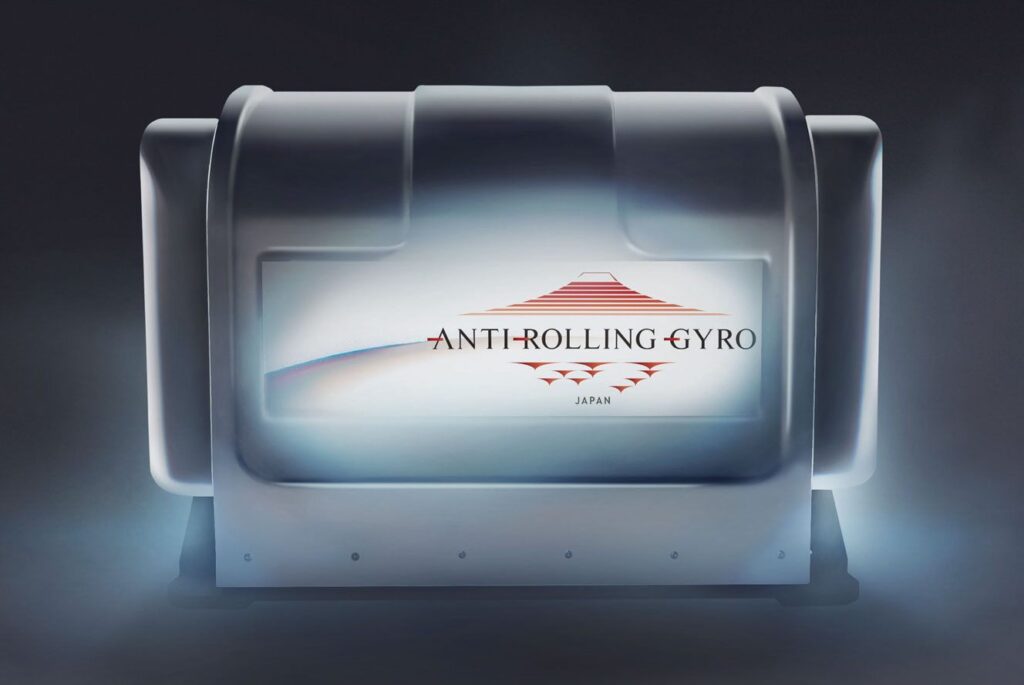

| 375T | 45–60 t | 37,500 Nm | 220–240 V AC, 5.5 kW max | 910 kg |
Spool-up time 30–45 minutes; stop time 30–60 minutes. Manufacturer data from DMS Holland.
As the exclusive DMS Holland distributor for Greece and Cyprus, we’ll advise you on the right configuration for your yacht, and handle installation and service.
