DMS STABILIZERS

DMS All-in-One

All-electric dual-axis fins for stabilization at anchor, cruising and high speed.

HOW IT WORKS

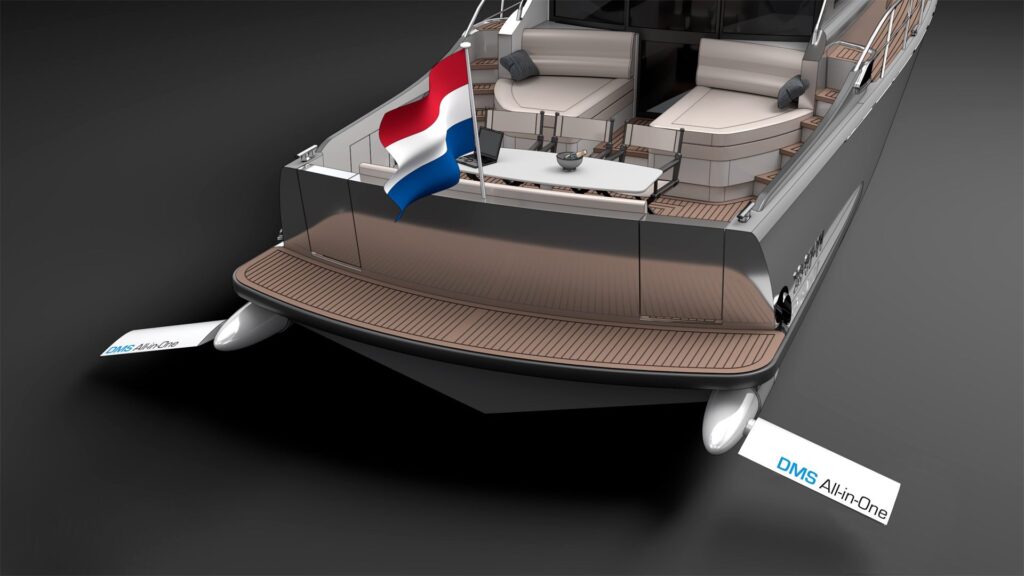

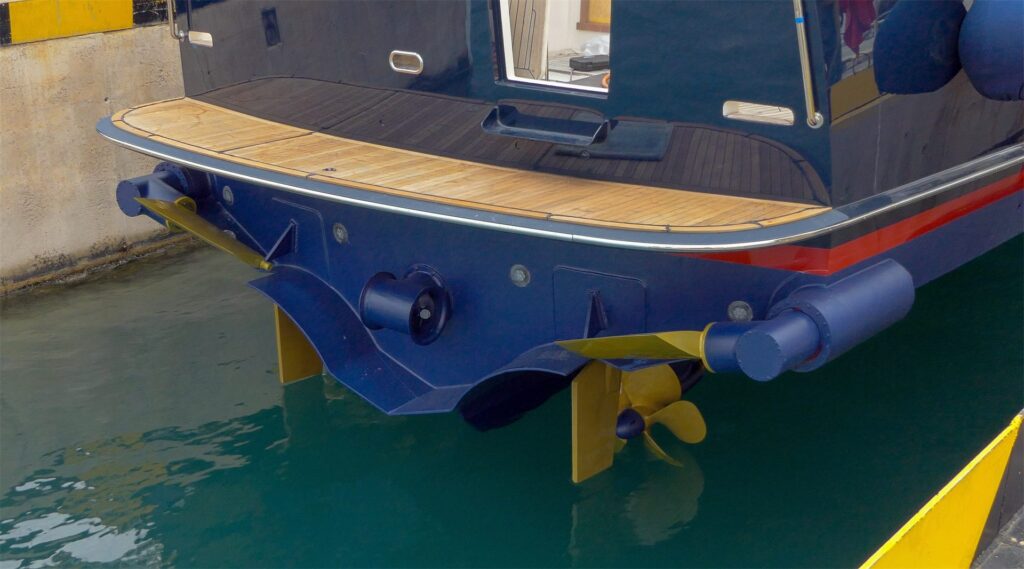

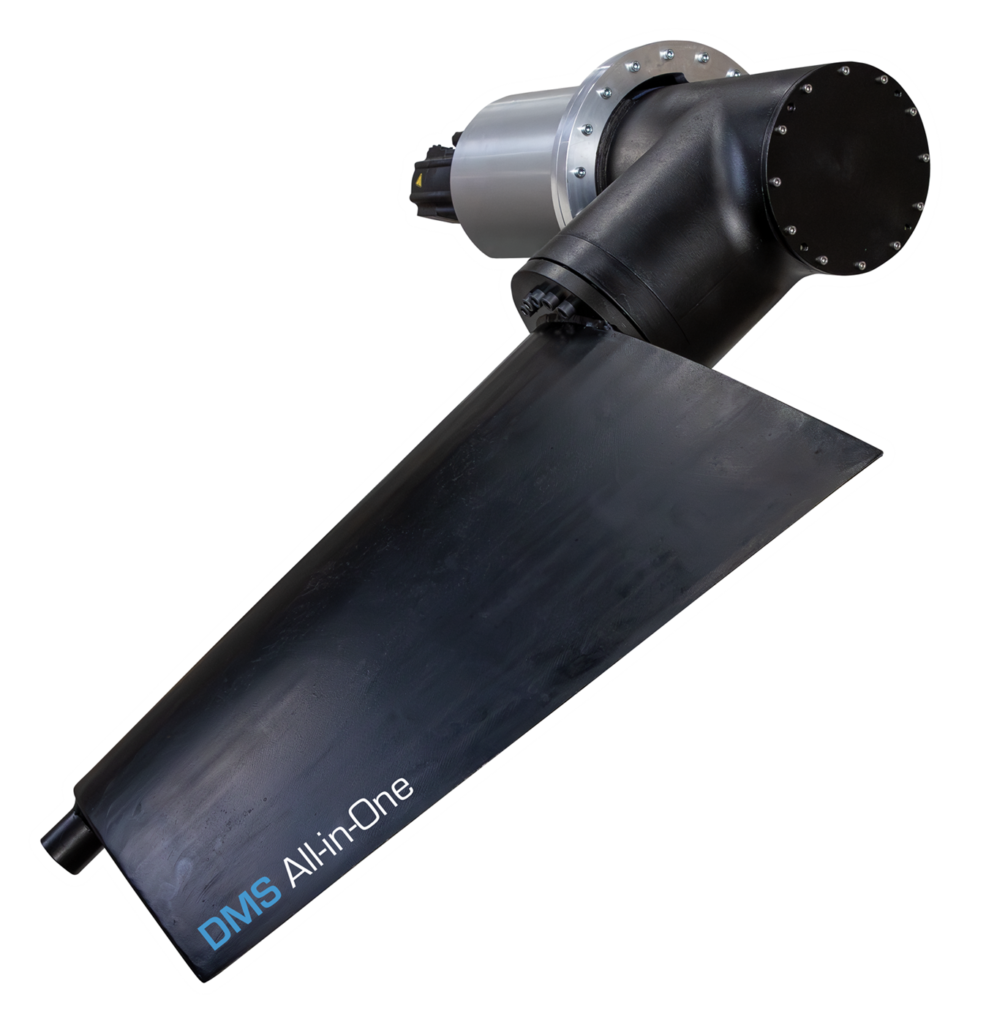

Two patented fins, mounted on the transom

The All-in-One is an all-electric fin stabilizer with two patented dual-axis fins. It mounts on the transom and switches automatically between three modes depending on your speed.

Because it sits on the transom rather than through the hull, it is especially well suited to retrofits, and its trim function can even help improve speed and reduce fuel consumption.

THREE MODES

One system for every speed

At anchor

The fins make a flapping motion to counter roll when the yacht is stationary.

Cruising speed

The fins rotate like conventional fins, with a high-aspect shape that keeps drag low.

High speed

The fins fold behind the transom, where they trim the yacht and dampen roll.

KEY BENEFITS

Why choose it

IN DETAIL

A closer look

SPECIFICATIONS

Technical data

Yacht size50–75 ft
OperationAt anchor, cruising and high speed
Power supply230 V AC single-phase, 50/60 Hz, up to 4 kW total (depends on fin size)
Auxiliary supply24 V DC, 5 A
WeightApprox. 250 kg per stabilizer unit
Housing and finsAluminium
Warranty5 years

* Manufacturer figures from DMS Holland, compared with a conventional single-axis fin.

Interested in the DMS All-in-One?

As the exclusive DMS Holland distributor for Greece and Cyprus, we’ll advise you on the right configuration for your yacht, and handle installation and service.
